SPECIFICATIONS



Brand Name: FoxAlien

Model Number: Vasto

Certification: ce

Is Smart Device: no

Spindle Power: 400W

Input Voltage: AC 110-220V

Working Area: 400x400x100mm (X-Y-Z)

Linear Rails: HG-15 linear rails (X-Y-Z)

Ball Screws: 16mm ball screws (X-Y-Z)

Spindle Mounts: 52mm, 65mm, 69mm

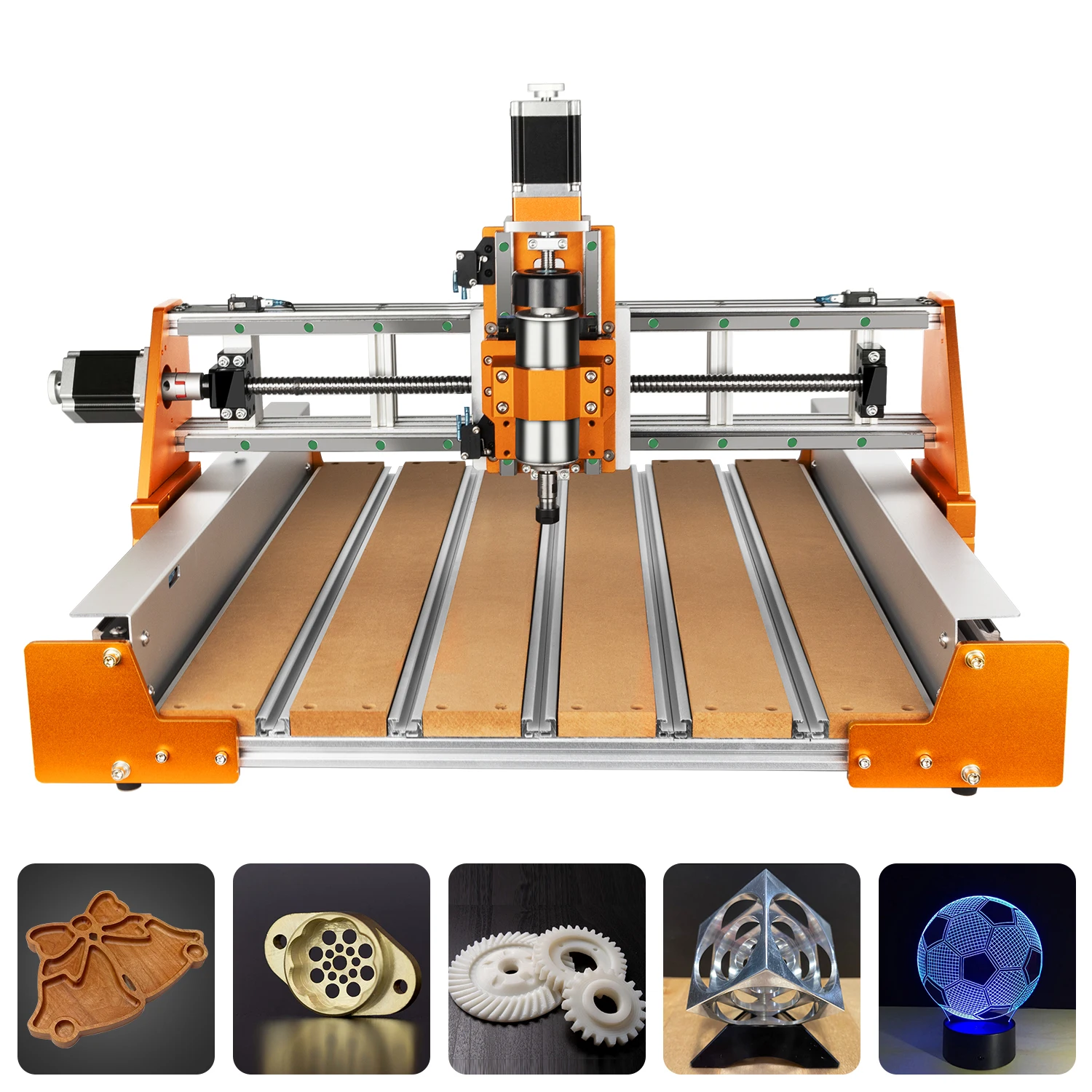

Vasto Machine Specification



Working Table: T-slot Hybrid Table

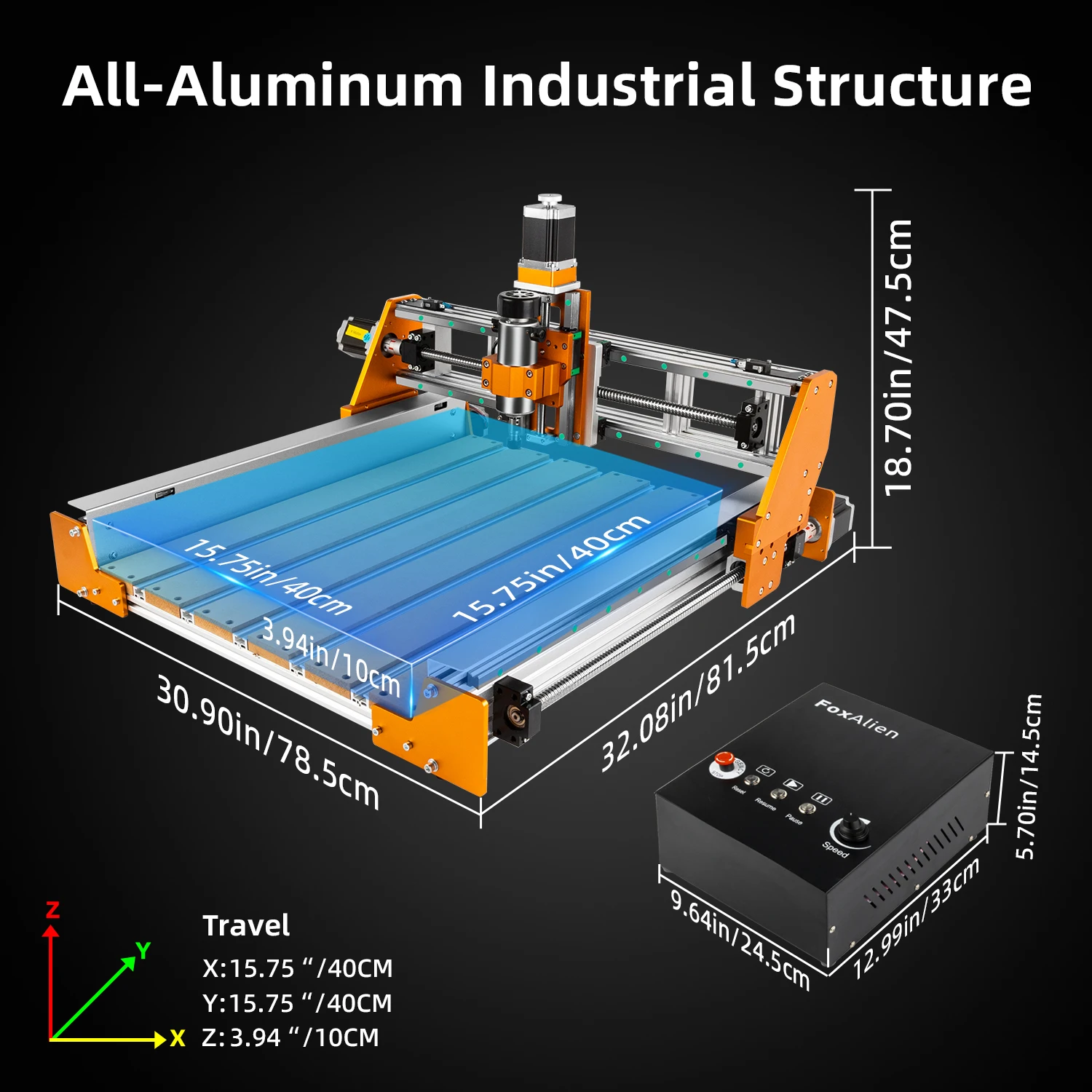

Cutting Area: 15.75"x15.75"x3.94"

Footprint Dimensions: 31.5"x31.5"x19.7"/80cm x 80cm x 50cm

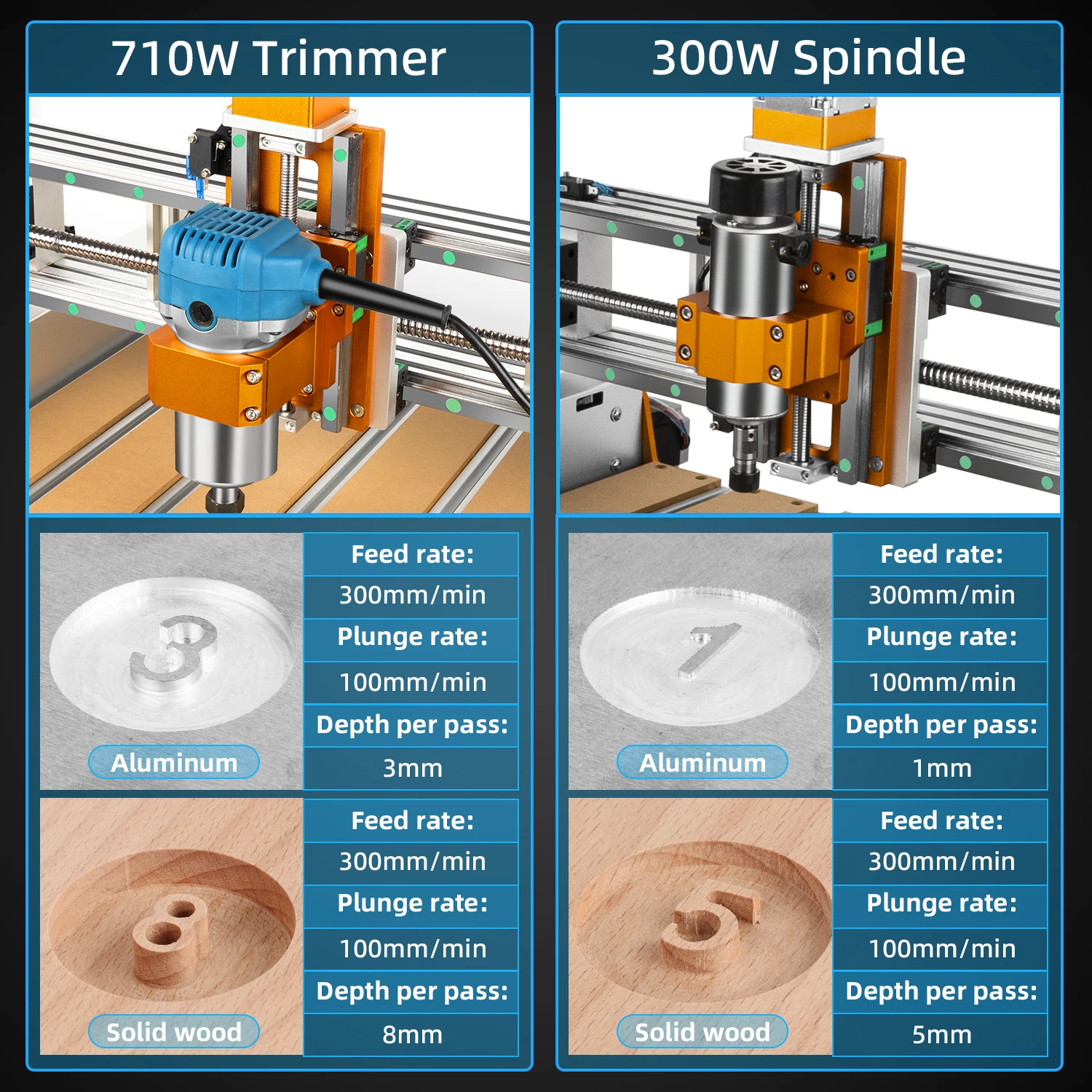

Spindle: 400W

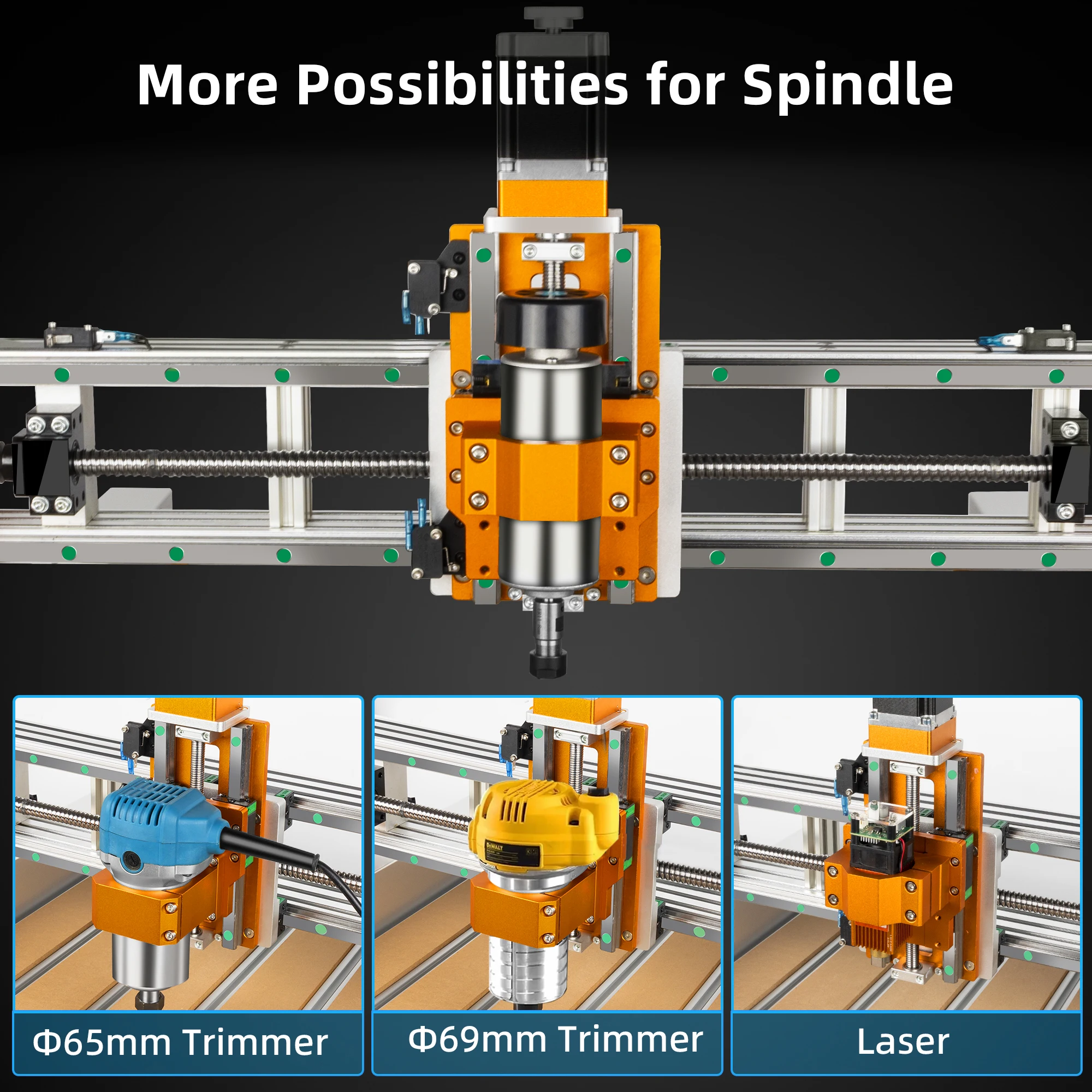

Router: Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611

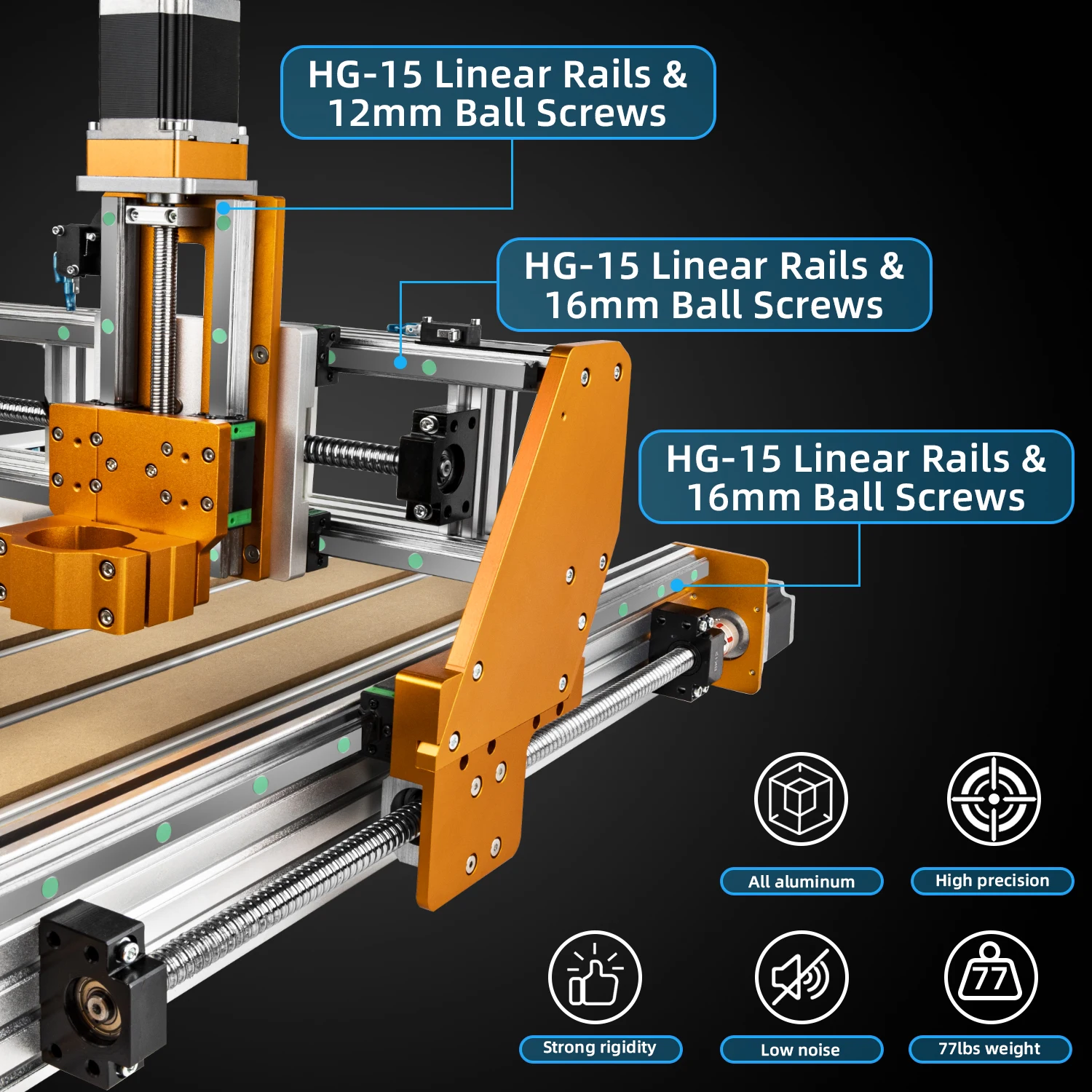

X Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks

Y Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks

Z Axis: Dual HG-15 Linear Rails & 12mm Ball Screws & 2 Slide Blocks

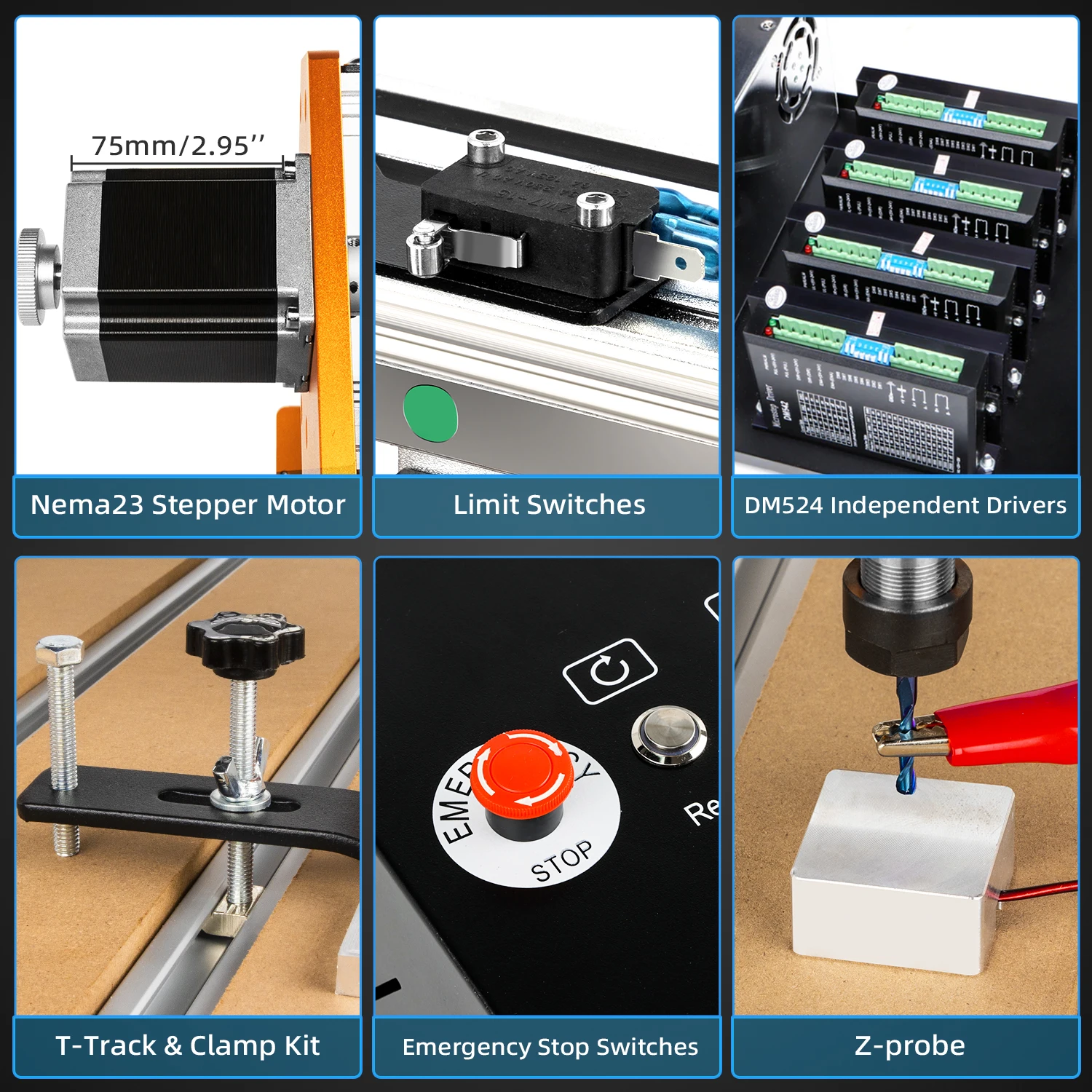

Stepper Motors: Nema23

Independent Driver: DM542

Machine Structure Material: All Metal
